1. Product Positioning: Engineered Exclusively for Outdoor Car Audio Competitions
The DANTY PA Series wide-range speakers are professional drive units developed for outdoor car audio SPL (Sound Pressure Level) contests and ESQL sound quality competitions. Balancing high dynamic sound pressure output and authentic vocal reproduction, they deliver powerful loudness while maintaining clean, rich midrange texture. These speakers have become the top pick for competing teams building professional outdoor demo audio systems.
2. Core Hardware & Electrical Specifications
Basic Electrical Parameters

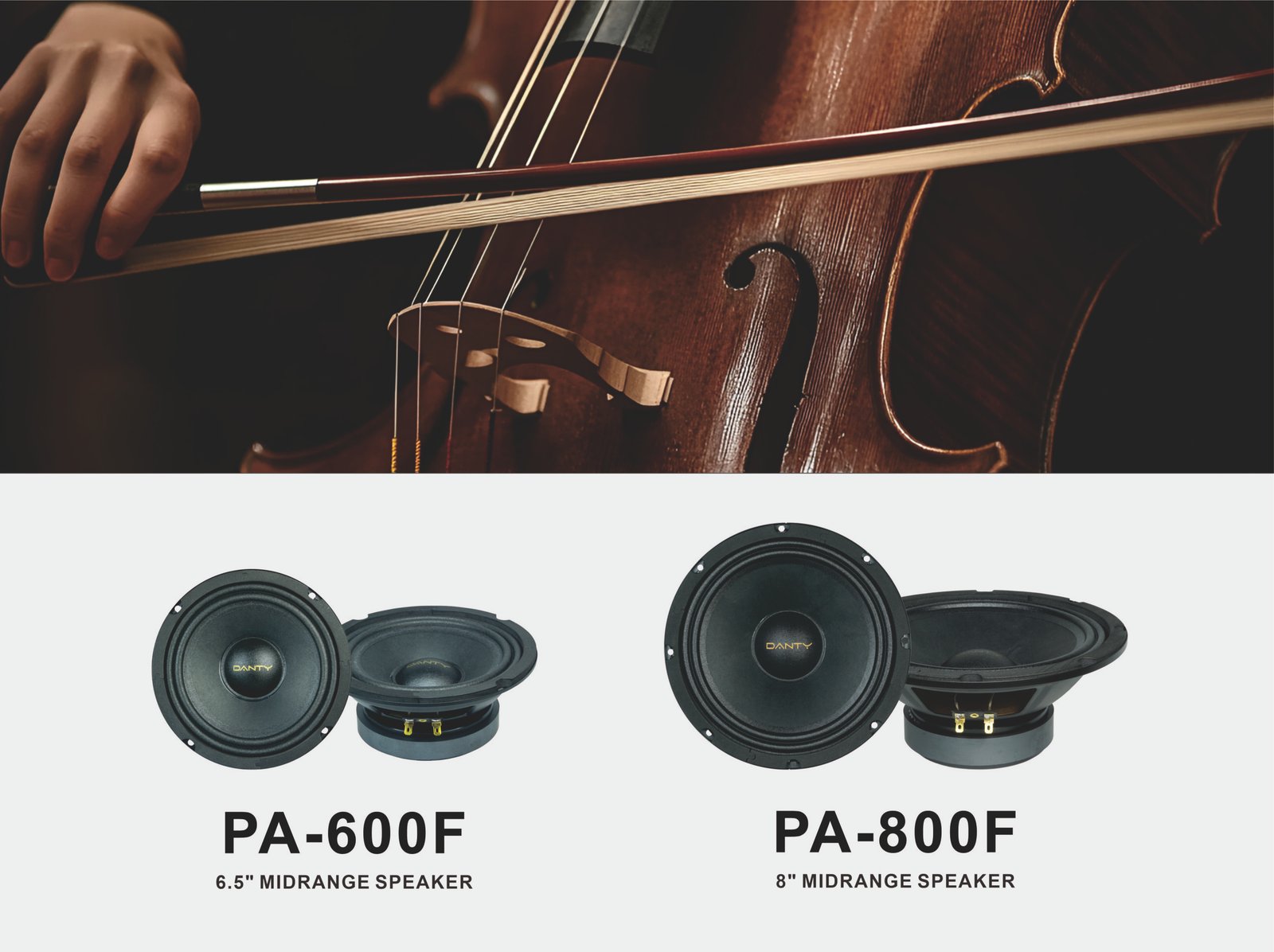

Model PA-600F | 6.5-inch Unit
- Nominal Impedance: 4 Ohms
- RMS Rated Power: 120W
- Peak Power: 300W
- Sensitivity: 92.2dB
- Resonance Frequency (Fs): 80Hz
Model PA-800F | 8-inch Unit
- Nominal Impedance: 4 Ohms
- RMS Rated Power: 150W
- Peak Power: 400W
- Sensitivity: 91.5dB
- Resonance Frequency (Fs): 80Hz
Structural Materials
- Magnetic Circuit System: High-performance ferrite magnets with strong magnetic flux, ensuring stable performance without power attenuation during long-duration high-volume playback.
- Voice Coil: Copper wire with fiberglass former, featuring superior heat resistance to maintain stable operation without overheating under continuous high-power load.
- Linear Suspension Design: Sufficient linear excursion delivers precise cone control under heavy dynamic movement, minimizing audio distortion.
- Reinforced Solid Construction: Rigid chassis suppresses cabinet resonance for purer sound output.
3. Acoustic Performance Advantages
- Ultra-High Sensitivity up to 92.2dB Easy to drive; even low-wattage amplifiers can generate impressive sound pressure levels, delivering ample loudness for open-air outdoor competition environments.
- Rich, Dense Midrange Smooth flat frequency response provides thick, full midrange for vocals and musical instruments. Clear sound imaging is preserved even in noisy outdoor venues. Perfectly meeting ESQL outdoor competition scoring criteria, these speakers achieve an ideal balance between massive SPL and premium sound quality.
- Stable High-Power Continuous Output Built for heavy power handling. Heat-resistant voice coils support extended non-stop playback without audio compression, crackling or distortion.
4. Application Scenarios
✅ Outdoor ESQL Sound Quality Competitions & Professional SPL Contests for Car Audio
✅ Core midbass configuration for outdoor demo vehicles and loud bass demo systems
✅ Midrange fill for multi-driver array setups, creating full-bodied sound fields with long-distance sound propagation
